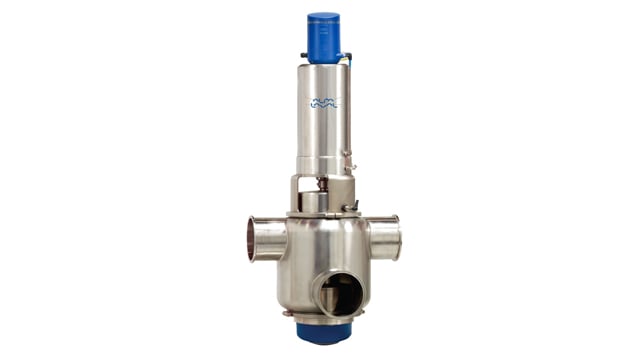

Unique Mixproof do dużych cząstek

Specjalnie zaprojektowany do transportu dużych cząstek lub cieczy o dużym stopniu lepkości. Zawór higieniczny posiada takie same podstawowe funkcje jak zawór Unique Mixproof. Umożliwia przepływ cząstek o średnicy do 45 mm.

Cost effective mixproof valve

Alfa Laval Unique mixproof valves feature two independent plugs, which means that a single Unique mixproof valve can often replace two or more valves of other types.

Exceptional spillage-free operation

A state-of-the-art double-seat design provides long-lasting, spillage-free operation thus minimizing the risk of product contamination. The use of double lip seals provides added protection to ensure safe and hygienic operation.

Easy valve to maintain and clean

Unique mixproof valves feature a top-loaded design, making maintenance fast and easy. It also features no adjustable components, a maintenance-friendly actuator and built-in leakage detection on all seals. Unique mixproof valves meet most hygienic standards and can be supplied with the optional SpiralClean cleaning system.

Click on the playlist to see all 4 animations!



You get the full benefit of using Unique mixproof valves by combining them with Alfa Laval ThinkTop and ThinkTop Basic valve sensing and control units.

Valve clusters - customized flow solutions

We are specialists in providing pre-built valve clusters customized to meet specific, individual requirements.
Our expertise helps ensure you the most efficient flow management, using as few components as possible and dealing effectively with key issues that include thermal cycling, cleanability, drainability and flow control.
Alfa Laval valve clusters can be supplied pre-assembled and pre-tested as well as fully wired and with all the necessary pneumatic tubing, junction boxes and control panels pre-connected.
This means you can bring even complex installations online as quickly as possible, saving time and avoiding lost revenue associated with on-site troubleshooting and downtime.

For more information, please refer to Documentation and to the Selection Guide (below).

For cost-effective alternatives to the Unique mixproof valve range, Alfa Laval also offers standard SMP mixproof valves.

Product benefits

  • Cost effective
  • Safe and hygienic operation
  • Easy to maintain and clean

Zasada działania

Construction

The unique mixproof valve concept is based on a series of base components, including valve body, valve plug, actuator and cleaning options and accessories that support a wide range of applications. Using these components, you can build a Unique mixproof valve to match your exact process requirements.

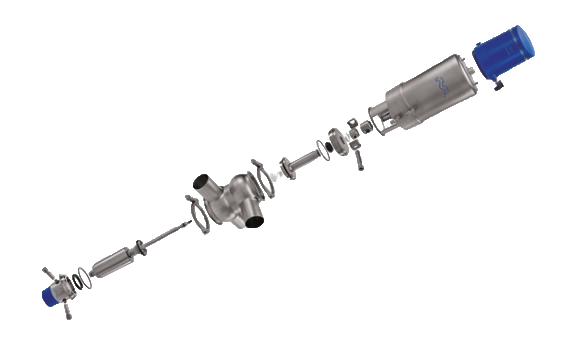

To facilitate maintenance, the Unique mixproof valve also features leakage detection holes that provide advance notification of wear or damage to static o-rings. Operators can visually inspect the valve at any time without having to disassemble it.Unique Mixproof exploded view w ThinkTop V70_600x375.jpg

Operating principle

The Alfa Laval Unique mixproof valve is a normally closed (NC) valve that is controlled from a remote location by means of compressed air.

To separate the two liquids, the valve has two independent plug seals. The space between the two seals forms an atmospheric leakage chamber. In the rare case of accidental product leakage, the product flows into the leakage chamber and is discharged through the leakage outlet.

When the valve is open, the leakage chamber is closed. The product can then flow from one line to the other without spillage. The valve can easily be cleaned and protected against the effects of water hammer according to the specific requirements of the process and the configuration of the valve. (There is no product spillage during valve operation).

SpiralClean system

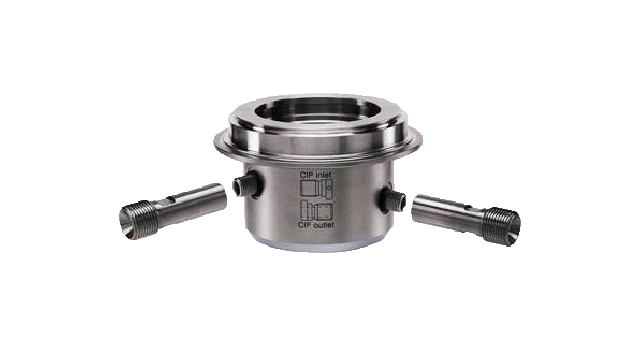

Alfa Laval offers its external connected CIP system "SpiralClean". This system ensures hygienic operation in demanding applications where cleaning of the Unique Mixproof by seat lift and seat push function is not sufficient. The SpiralClean system can be added to clean the upper and lower plugs and to rinse the leakage chamber of the valve. Using less cleaning fluid, utilities and time, SpiralClean cleans more thoroughly and efficiently than conventional externally connected CIP devices.

Another big benefit: SpiralClean enables the Unique mixproof valve to operate under aseptic-like conditions, creating a steam barrier to the atmosphere upon applying steam to the CIP pipes.unique-mixproof-spiral-clean-640x360.jpg

Options

    • 3-A version available upon request
    • Product wetted seals HNBR, NBR or FPM
    • Male parts or clamp liners in accordance with required standard
    • Control and indication: ThinkTop V70
    • Indication for detection of upper seat lift
