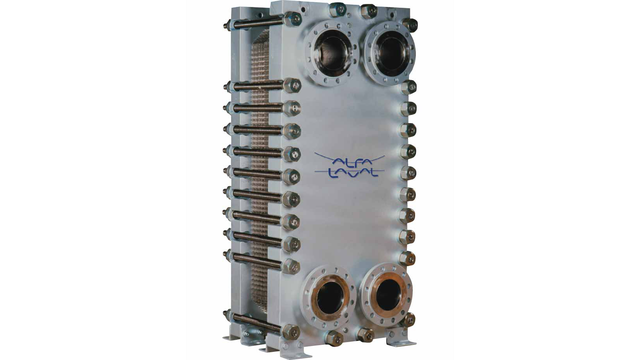

Spawane płytowe wymienniki ciepła (konstrukcja z ramą)

Packinox plate-and-frame heat exchangers are the perfect choice for heat transfer duties in processes with large flows, high temperatures and high pressures. Find out more about the advantages of plate-and-frame heat exchangers below.

packinox plate-and-frame heat exchanger

Outstanding thermal efficiency

  • Lower CAPEX – A single Packinox can replace several large shell-and-tube heat exchangers
  • Lower OPEX – The exceptional heat recovery brings substantial energy savings
  • Low maintenance costs thanks to minimal fouling
  • Low pressure drop
  • Reliable, proven technology


A single Packinox outperforms systems consisting of multiple large shell-and-tubes, both in terms of heat recovery and investment costs.
And thanks to the innovative design of Packinox+, the latest addition to the Packinox range, you can now optimize for highly asymmetric flows, opening up for a wide range of demanding duties.


FlexFlow – for asymmetric flows

Until recently, Packinox heat exchangers were targeting duties with fairly symmetric flows. With the introduction of FlexFlow design the benefits of Packinox technology are now extended to a much wider range of applications and industries.

FlexFlow plate 640x360


A Packinox+ heat exchanger is the optimal solution for large-scale heat recovery in industrial processes with high pressures and temperatures. The unique, welded plate design makes it possible to recover more heat in a single Packinox+ than in a system comprising multiple large shell-and-tube heat exchangers. The result is significant energy savings, reduced footprint, and lower CO2 emissions.

Packinox plate assymetric flow 640x360

Płytowo-płaszczowy wymiennik ciepła Packinox

Alfa Laval Packinox jest również dostępny w konfiguracji "plate-and-shell", która jest odpowiednia do zastosowań przy wyższych ciśnieniach i temperaturach. W modelu plate-and-shell zastosowano również opatentowany przez Alfa Laval system Spray Bar, który optymalizuje wtrysk cieczy do strumienia gazu.

阿法拉伐全焊接板壳换热器-Alfa Laval fully welded plate and shell heat exchanger
